1400x1200mm EPS Foam Molding Machine DN100 380 Volt

1
MOQ
negotiation
Price
1400x1200mm EPS Foam Molding Machine DN100 380 Volt
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V 50Hz
Warranty Period: 1 Year
Color: Customization
Raw Material: EPS
High Light:

1200mm eps foam molding machine

,

1400mm eps foam molding machine

,

DN100 expanded polystyrene machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Certification: -
Model Number: PSSM
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Product Description

CHEAP AND SIMPLE EPS FORMING MACHINE

1. High-strength square tube welded by tempering prevent form deformation .
2. After sand-blasting,greatly improve corrosion performance and service life of equipment .
3. Adopt PLC(Mitsubishi) and HMI(WEINVIEW) ,for close-mold ,filling ,heating, cooling,de-mold,the whole proess is automatic.

Item Unit PSSM140B PSSM160B PSSM170B
Mould Dimension mm 1400X1200 1600X1400 1700X1500
Max Product Dimension mm 1250X1050X350 1450X1350X350 1550X1350X350
Stroke mm 170-1420 170-1420 170-1420
Steam Inlet mm DN100 DN100 DN100
Steam Consumption t/t (10-15t)Steam of 1t Material
Cooling Water inlet mm DN80 DN80 DN80
Cooling Water
Consumption
kg/cycle 55-150 60-180 70-190
Compressed Air Inlet mm DN40 DN40 DN50
Compressed Air
Consumption
m³/cycle 1.8 2 2.2
Vacuum Pump
Capacity
m³/h 230 230 280
Drainage Port mm DN150 DN150 DN150
Connected Load kw 13 17 17
Outside Dimension mm 4600X2300X3800 4600X2500X4000 4600X2600X4100
Weight kg 5000 6000 6500
Cycle Time s 60-120 70-160 80-170

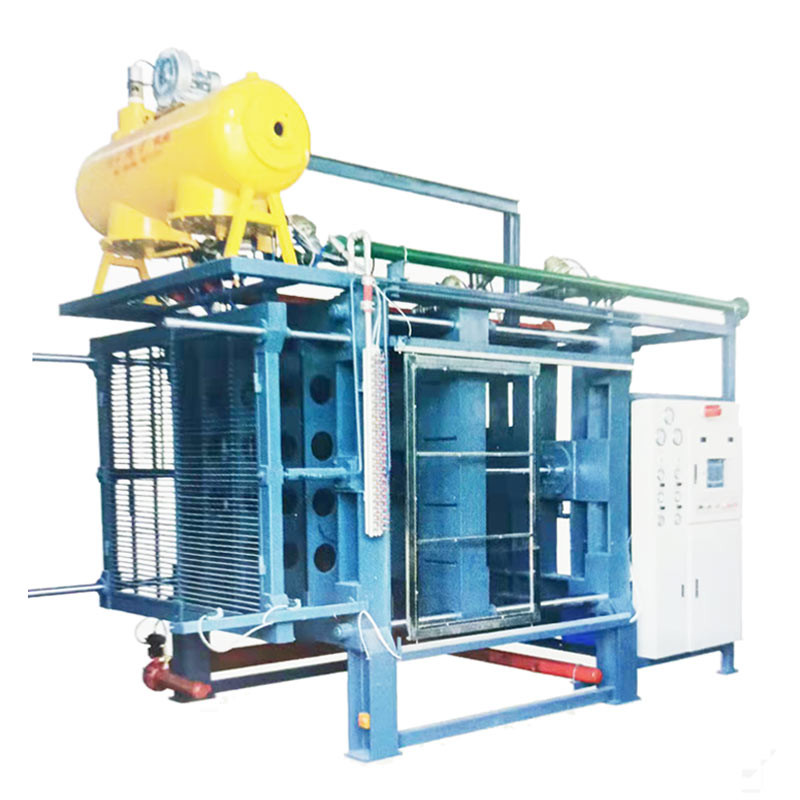

1400x1200mm EPS Foam Molding Machine DN100 380 Volt 0

1400x1200mm EPS Foam Molding Machine DN100 380 Volt 1

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
