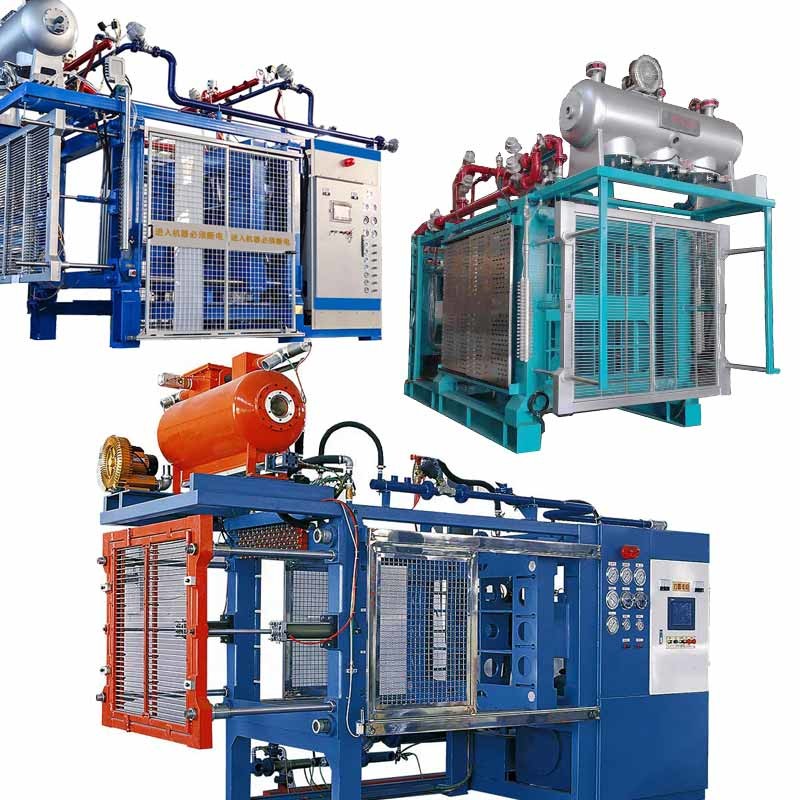

Vacuum Automatic EPS Foam Molding Machine 5 Meters

1
MOQ
negotiation
Price
Vacuum Automatic EPS Foam Molding Machine 5 Meters
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V 50Hz
Warranty Period: 1 Year
Room Height Required: 5m
Color: Customization
Port: SHANGHAI/NINGBO
Raw Material: EPS
High Light:

PIN SHENG Automatic EPS Foam Molding Machine

,

PIN SHENG Vacuum EPS Foam Molding Machine

,

PIN SHENG 5m cnc eps foam

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Certification: -
Model Number: PSSM
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Product Description

PINSHENG EPS Vacuum Automatic Customizable Forming Machine

CNC encoder is adopted for high-speed machine to control the stroke distance of opening and closing mold, so as to ensure consistent seam keeping and uniform heating density during feeding

Mechanical Structure:

1. Weld together with high-intensity square tube and avoid deformation of the template by tempering.

2. Increase the anticorrosion performance and useful life of the equipment largely after derusting by sandblast.

3. Spray zinc-rich primer for antirust to increase the antirust performance and useful life of the equipment largely after sand blasting.

Electric Control:

1. Controlled by PLC(Mitsubishi) with full-automatic operation in clamping,feeding,heating,cooling and stripping on HMI(WEINVIEW)

2. All the electrical components are adopted with well-known brands at home and abroad with more excellent equipment stability.

3. Stroke adjustment is controlled by encoder ,which is convenient ,which is convenient to adjust with high precision by setting on HMI.



Item Unit PSSM100B PSSM120B PSSM140B PSSM160B PSSM170B PSSM180B PSSM200B
Mould Dimension mm 1000X800 1200X1000 1400X1200 1600X1400 1700X1500 1800X1600 2000X1800
Max Product Dimension mm 850X650X350 1050X850X350 1250X1050X350 1450X1350X350 1550X1350X350 1650X1450X350 1850X1650X350
Stroke mm 110-1360 110-1360 170-1420 170-1420 170-1420 120-1370 40-1290
Steam Inlet mm DN65 DN80 DN100 DN100 DN100 DN100 DN100
Steam Consumption t/t (10-15t)Steam of 1t Material
Cooling Water inlet mm DN65 DN80 DN80 DN80 DN80 DN80 DN100
Cooling Water
Consumption
kg/cycle 40-110 45-130 55-150 60-180 70-190 90-200 100-220
Compressed Air Inlet mm DN40 DN40 DN40 DN40 DN50 DN50 DN50
Compressed Air
Consumption
m³/cycle 1.2 1.5 1.8 2 2.2 2.4 2.6
Vacuum Pump
Capacity
m³/h 165 165 230 230 280 280 280
Drainage Port mm DN125 DN125 DN150 DN150 DN150 DN150 DN150
Connected Load kw 11 11 13 17 17 17 20
Outside Dimension mm 4300X1900X3400 4600X2100X3600 4600X2300X3800 4600X2500X4000 4600X2600X4100 4600X2700X4200 4600X2900X4400
Weight kg 4000 4500 5000 6000 6500 7000 7500
Cycle Time s 60-90 60-100 60-120 70-160 80-170 80-180 90-180

Vacuum Automatic EPS Foam Molding Machine 5 Meters 0

Vacuum Automatic EPS Foam Molding Machine 5 Meters 1

Vacuum Automatic EPS Foam Molding Machine 5 Meters 2

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
