Lead Screw Semi Automatic EPS Foam Molders 900x540mm

1
MOQ
negotiation
Price
Lead Screw Semi Automatic EPS Foam Molders 900x540mm
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V 50HZ
Warranty Period: 1 Year
Color: Customization
Raw Material: EPS
High Light:

Lead Screw eps foam molders

,

540mm eps foam molders

,

900mm eps foam machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSSM90-170LS
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 20pcs per month
Product Description

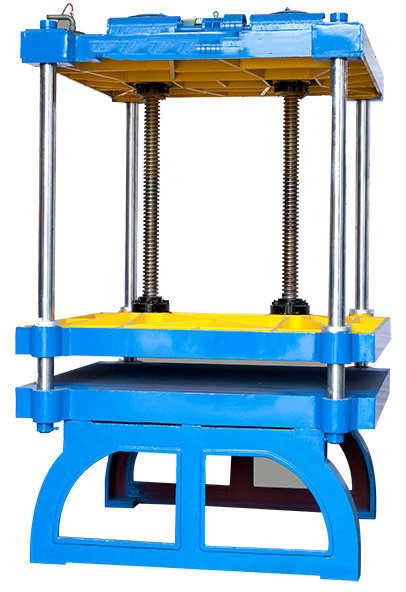

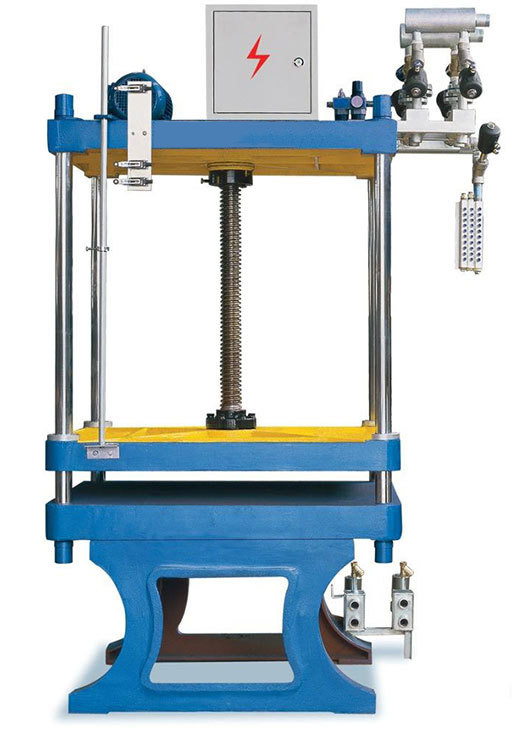

Lead screw Semi-Automatic Foam Moulding Machine

Screw type semi-automaton adopts motor drive, higher accuracy and safety factor than hydraulic cylinder type

Function Description:
1. The machine is composed of PLC programmable controller and touch screen intelligent control system to realize the automation of product production;


2. The machine is suitable for all kinds of working environment, flexible and convenient, to make use of space, time and money in a wide range of Z;


3. The machine has the main function of automata, which can be used in one machine;


4. Maximum reduction of operating intensity, production efficiency more than 5 times;


5. Simple operation and convenient maintenance.

Item Unit PSSM90LS PSSM100LS PSSM120-08LS PSSM120-10LS PSSM130LS PSSM150LS PSSM170LS
Mould Dimension mm 900X540 1000X740 1200X640 1200X840 1300X840 1500X1040 1700X1040
Stroke mm 150X1100
Platform size mm 900X700 1000X900 1200X800 1200X1000 1300X1000 1500X1200 1700X1200
Connected Load kw 1.5 1.5 1.5 2.2 2.2 3 3
Weight kg 1800 2500 2700 2800 2900 3100 3500



Lead Screw Semi Automatic EPS Foam Molders 900x540mm 0Lead Screw Semi Automatic EPS Foam Molders 900x540mm 1

Lead Screw Semi Automatic EPS Foam Molders 900x540mm 2

Lead Screw Semi Automatic EPS Foam Molders 900x540mm 3

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
