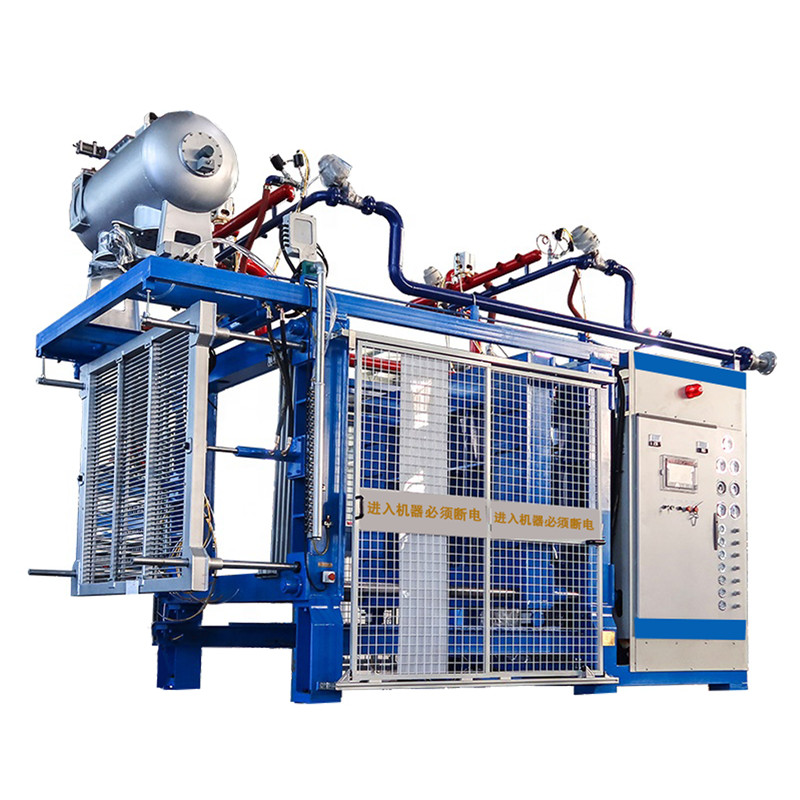

Automatic EPS Shape Moulding Machine With Vacuum(Fast)
This machine has many improvements copared to the basic type machine and the features are as follows:
Mechanical Structure :
1. using 16/25mm welded steel plate,greatly improve the strength of steel and equipment .
2. after tempering prevent form deformation.
3. after sand-blasting ,greatly improve corrosion performance and service life of the equipment .
4. after sand-blasting,anti-rust spray zinc -rich primer,rust greatly improve equipment performance and service life.
Steam System :
Flow control valve and Japan with large pressure sensor controled so that theheating accuracy ,precise pressure is reached 20% reduction in energy consumption .
Cooling System :
Vertical vacuum barrel ,with a vacuum cooling spray device ,vacuum pump
| Item | Unit | PSSM100F | PSSM120F | PSSM140F | PSSM160F | PSSM170F | PSSM180F | PSSM200F |
| Mould Dimension | mm | 1000X800 | 1200X1000 | 1400X1200 | 1600X1400 | 1700X1500 | 1800X1600 | 2000X1800 |
| Max Product Dimension | mm | 850X650X350 | 1050X850X350 | 1250X1050X350 | 1450X1350X350 | 1550X1350X350 | 1650X1450X350 | 1850X1650X350 |
| Stroke | mm | 110-1360 | 110-1360 | 170-1420 | 170-1420 | 170-1420 | 120-1370 | 40-1290 |
| Steam Inlet | mm | DN65 | DN80 | DN100 | DN100 | DN100 | DN100 | DN100 |
| Steam Consumption | t/t | (9-13t)Steam of 1t Material | ||||||
| Cooling Water inlet | mm | DN65 | DN80 | DN80 | DN80 | DN80 | DN80 | DN100 |
| Cooling Water Consumption | kg/cycle | 40-110 | 45-130 | 55-150 | 60-180 | 70-190 | 90-200 | 100-220 |
| Compressed Air Inlet | mm | DN40 | DN40 | DN40 | DN40 | DN50 | DN50 | DN50 |
| Compressed Air Consumption | m³/cycle | 1.2 | 1.5 | 1.8 | 2 | 2.2 | 2.4 | 3 |
| Vacuum Pump Capacity | m³/h | 165 | 165 | 230 | 230 | 280 | 280 | 280 |
| Drainage Port | mm | DN125 | DN125 | DN150 | DN150 | DN150 | DN150 | DN150 |
| Connected Load | kw | 11 | 11 | 13 | 17 | 17 | 17 | 20 |
| Outside Dimension | mm | 4300X1900X3400 | 4600X2100X3600 | 4600X2300X3800 | 4600X2500X4000 | 4600X2600X4100 | 4600X2700X4200 | 4600X2900X4400 |
| Weight | kg | 4000 | 4500 | 5000 | 6000 | 6500 | 7000 | 7500 |
| Cycle Time | s | 50-80 | 50-90 | 50-110 | 60-130 | 70-140 | 80-180 | 90-180 |
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.
2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied
3. Are you a trading company or a manufacturer?
We are manufacturer.
4. How long is your delivery time?
Normally delivery time is 30~45 days.
5. How many years have your company made this kind of equipment?
More than 10 years.
6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.
7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation
8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.
9. Can you can design the equipment according to our size?
Yes, it is acceptable
10. How many production lines in your factory?
We have total 10 production line.
