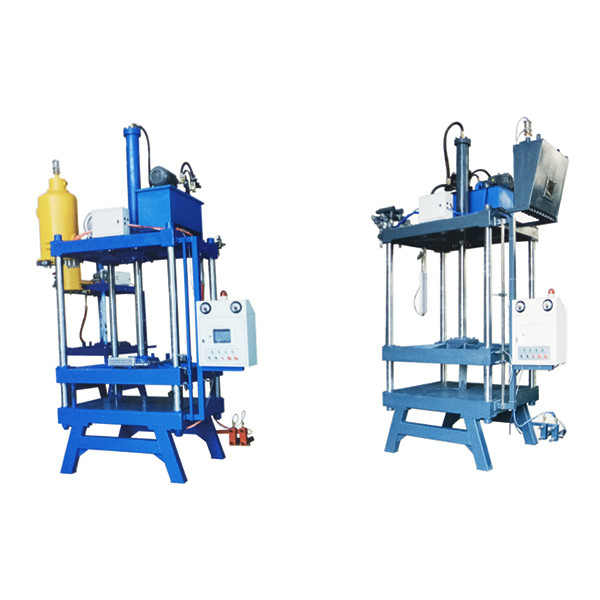

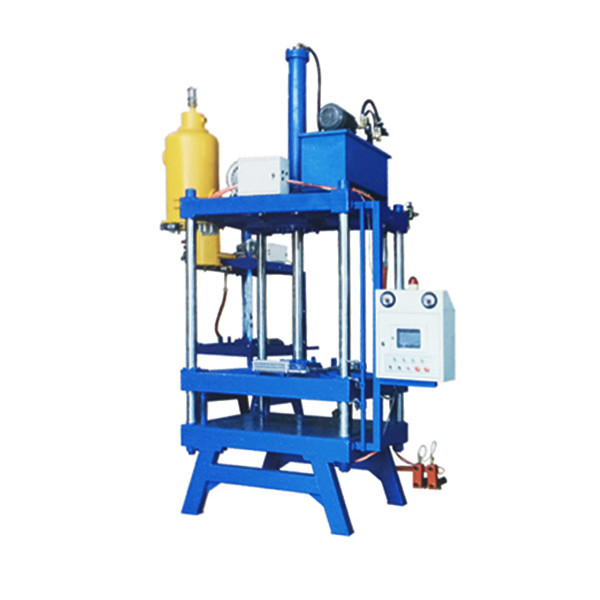

Hydraulic EPS Foam Molding Machine Semi Automatic

Hydraulic EPS Foam Molding Machine Semi Automatic
Features Gallery Product Description Request A Quote
Voltage: 380V 50HZ
Warranty Period: 1 Year
Color: Customization
Raw Material: EPS
High Light:

PIN SHENG Hydraulic EPS Foam Molding Machine


PIN SHENG Semi Automatic EPS Foam Molding Machine


PIN SHENG EPS expanded polystyrene molding

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSSM90-170S
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 20pcs per month
Product Description


The semi-automatic forming machine is simple in structure, simple in operation and easy to maintain. The most important thing is that the price is 1/3 of the automatic forming machine, and the price is cheap.
Function Description:
1. The machine consists of PLC programmable controller, touch screen, hydraulic components, pneumatic components composed of intelligent control system, realize the automation of product production;

2. The machine has automatic feeding, heating, cooling functions, and has a two-speed hydraulic control system;

3. The machine runs smoothly, the stroke is accurate, and the products are of high quality;

4. The machine saves steam, manpower, improves efficiency, easy to operate, each person can operate several machines at the same time.


Item Unit PSSM120-08S PSSM120-10S PSSM130S PSSM150S PSSM170S
Mould Dimension mm 1200X600 1200X800 1300X800 1500X1000 1700X1000
Stroke mm 150X1100
Platform size mm 1200X800 1200X1000 1300X1000 1500X1200 1700X1200
Connected Load kw 5 5 5 5 7
Weight kg 2700 2800 3000 3500 3800

Hydraulic EPS Foam Molding Machine Semi Automatic 0

Hydraulic EPS Foam Molding Machine Semi Automatic 1

Hydraulic EPS Foam Molding Machine Semi Automatic 2

1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.

2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied.

3. Are you a trading company or a manufacturer?
We are manufacturer.

4. How long is your delivery time?
Normally delivery time is 30~45 days.

5. How many years have your company made this kind of equipment?
More than 10 years.

6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.

7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation.

8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.

9. Can you can design the equipment according to our size?
Yes, it is acceptable

10. How many production lines in your factory?
We have total 10 production line.
