Vacuum EPS Shape Moulding Machine Blue Or Green CNC

1
MOQ
negotiation
Price
Vacuum EPS Shape Moulding Machine Blue Or Green CNC
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380v 50Hz
Color: Blue Or Green
Warranty: 1 Year
Origin: Zhejiang CHINA
Cycle Time: 60-180S
Material: EPS
Compressed Air: 0.6-0.8mp
Steam: 0.4-0.8mp
High Light:

PIN SHENG Vacuum EPS Shape Moulding Machine

,

PIN SHENG Green EPS Shape Moulding Machine

,

PIN SHENG Blue cnc eps foam

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSSM
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

PIN SHENG Vacuum EPS Shape Moulding Machine For Sale

1.  Product Introduction

We are providing qualify EPS moulding machine to worldwide clients, our machines are loved by customers because of their accuracy and high production efficiency.



2. Product Parameter (Specification)



1.Mechanical structure All the steel plate of our EPS moulding machine is welded with thick steel plate , all the formwork is tempered at high temperature and shot peening at high pressure . It has high strength and high surface hardness. All templates are processed by CNC to ensure accuracy
2.Steam System Our EPS moulding machine provides long range control system reducing valve for stabilizing flow, with control accuracy ±0.2 Bar.
3.Electrical control

Our EPS moulding machine adopts all worldwide well-known components, such as Taita touch screen,Low-voltage electrical appliances are with the brand Schneider.

Through steam pressure,main steam pressure,demoulding,air cooling,and pressurized feeding all adopt remote pressure regulating system,valves open and close according to the set pressure ratio, it is very easy to operate.

4.Hydraulic System A digital encoder of the EPS Moulding machine is used to control the stroke distance of mold opening and clamping,it can keep the safety protection function of the mechanical,hydraulic and electrical tripe interlocking so as to meet the safety standard.



3.Product Feature And Application

EPS moulding machine is used to produce all kinds of EPS product,as long as equipped with suitable molds, our machines can produce the products you want

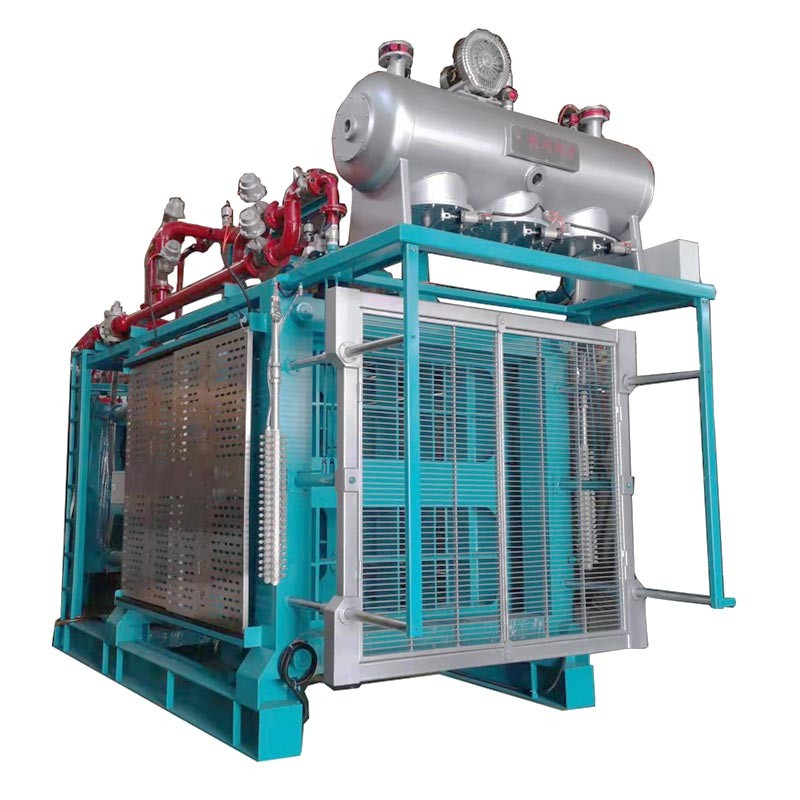

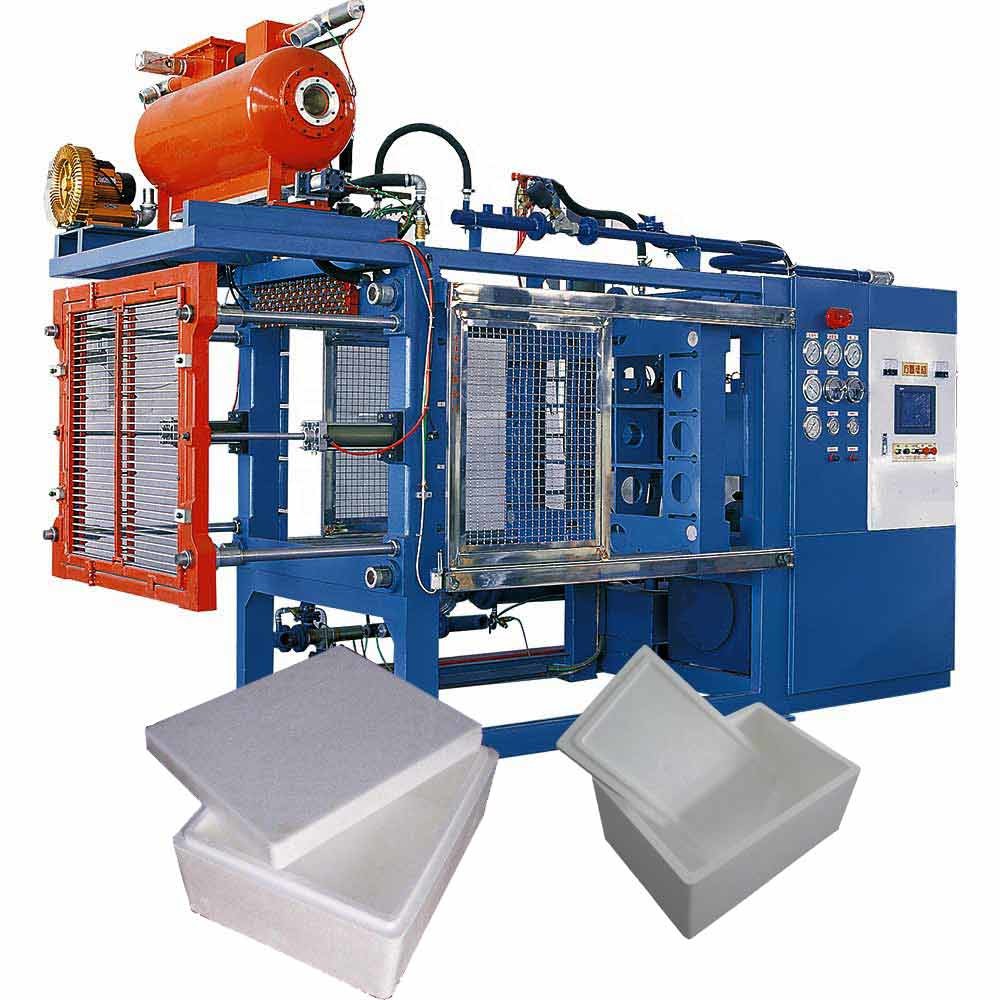

Vacuum EPS Shape Moulding Machine Blue Or Green CNC 0

Vacuum EPS Shape Moulding Machine Blue Or Green CNC 1





Vacuum EPS Shape Moulding Machine Blue Or Green CNC 2
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.

2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied

3. Are you a trading company or a manufacturer?
We are manufacturer.

4. How long is your delivery time?
Normally delivery time is 30~45 days.

5. How many years have your company made this kind of equipment?
More than 10 years.

6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.

7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation

8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.

9. Can you can design the equipment according to our size?
Yes, it is acceptable

10. How many production lines in your factory?
We have total 10 production line.
