1600x1400mm EPS Moulding Machine Basic Automatic Foam

1
MOQ
negotiation
Price
1600x1400mm EPS Moulding Machine Basic Automatic Foam
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V 50Hz
Warranty Period: 1 Year
Raw Material: EPS
Origin: Zhejiang CHINA
High Light:

1400mm eps moulding machine

,

1600mm eps moulding machine

,

Automatic eps machining

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Certification: -
Model Number: Customization
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Product Description

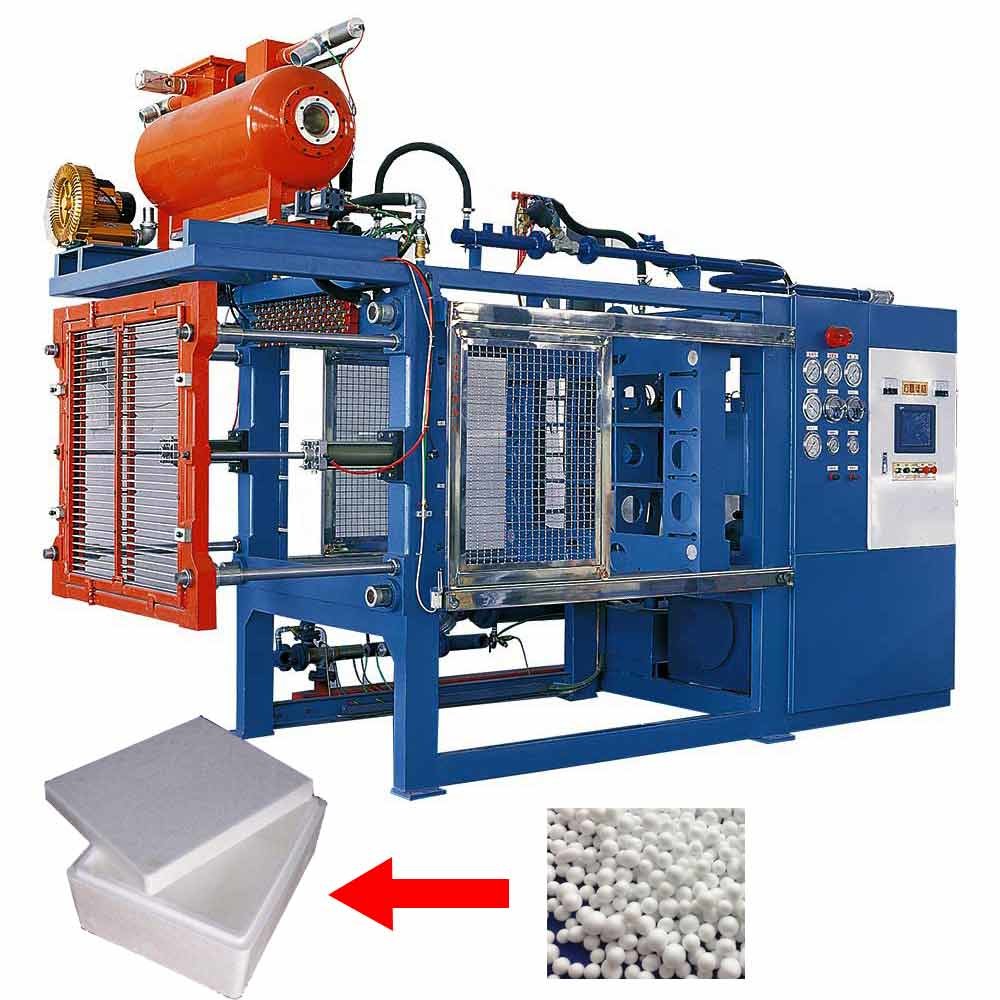

EPS Basic Automatic Foam Molding Machine Making Eps Box

Type equipment can produce vegetable transport box, seafood transport box, fruit transport box and so on
1. High-strength square tube welded by tempering prevent form deformation .
2. After sand-blasting,greatly improve corrosion performance and service life of equipment .
3. Adopt PLC(Mitsubishi) and HMI(WEINVIEW) ,for close-mold ,filling ,heating, cooling,de-mold,the whole proess is automatic.

Item Unit PSSM120B PSSM140B PSSM160B
Mould Dimension mm 1200X1000 1400X1200 1600X1400
Max Product Dimension mm 1050X850X350 1250X1050X350 1450X1350X350
Stroke mm 110-1360 170-1420 170-1420
Steam Inlet mm DN80 DN100 DN100
Steam Consumption t/t (10-15t)Steam of 1t Material
Cooling Water inlet mm DN80 DN80 DN80
Cooling Water
Consumption
kg/cycle 45-130 55-150 60-180
Compressed Air Inlet mm DN40 DN40 DN40
Compressed Air
Consumption
m³/cycle 1.5 1.8 2
Vacuum Pump
Capacity
m³/h 165 230 230
Drainage Port mm DN125 DN150 DN150
Connected Load kw 11 13 17
Outside Dimension mm 4600X2100X3600 4600X2300X3800 4600X2500X4000
Weight kg 4500 5000 6000
Cycle Time s 60-100 60-120 70-160







1600x1400mm EPS Moulding Machine Basic Automatic Foam 0



1600x1400mm EPS Moulding Machine Basic Automatic Foam 1



1600x1400mm EPS Moulding Machine Basic Automatic Foam 2



1600x1400mm EPS Moulding Machine Basic Automatic Foam 3

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
