Customized EPS Foam Molding Machine Vacuum Automatic 50Hz

1
MOQ
negotiation
Price
Customized EPS Foam Molding Machine Vacuum Automatic 50Hz
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V 50Hz
Warranty Period: 1 Year
Room Height Required: 5m
Color: Customization
Port: SHANGHAI/NINGBO
Raw Material: EPS
High Light:

Vacuum EPS Molding Machine

,

Automatic EPS Foam Molders

,

50Hz EPS Foam Molding Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Certification: -
Model Number: PSSM
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Product Description

PINSHENG CUSTOMER COLOR CUSTOMIZATION VACUUM AUTOMATIC EPS FOAM MOLDING MACHINE

CNC encoder is adopted for high-speed machine to control the stroke distance of opening and closing mold, so as to ensure consistent seam keeping and uniform heating density during feeding
Mechanical Structure:
1. Weld together with high-intensity square tube and avoid deformation of the template by tempering.
2. Increase the anticorrosion performance and useful life of the equipment largely after derusting by sandblast.
3. Spray zinc-rich primer for antirust to increase the antirust performance and useful life of the equipment largely after sand blasting.
Electric Control:
1. Controlled by PLC(Mitsubishi) with full-automatic operation in clamping,feeding,heating,cooling and stripping on HMI(WEINVIEW)
2. All the electrical components are adopted with well-known brands at home and abroad with more excellent equipment stability.
3. Stroke adjustment is controlled by encoder ,which is convenient ,which is convenient to adjust with high precision by setting on HMI.


ItemUnitPSSM100BPSSM120BPSSM140BPSSM160BPSSM170BPSSM180BPSSM200B
Mould Dimensionmm1000X8001200X10001400X12001600X14001700X15001800X16002000X1800
Max Product Dimensionmm850X650X3501050X850X3501250X1050X3501450X1350X3501550X1350X3501650X1450X3501850X1650X350
Strokemm110-1360110-1360170-1420170-1420170-1420120-137040-1290
Steam InletmmDN65DN80DN100DN100DN100DN100DN100
Steam Consumptiont/t(10-15t)Steam of 1t Material
Cooling Water inletmmDN65DN80DN80DN80DN80DN80DN100
Cooling Water
Consumption
kg/cycle40-11045-13055-15060-18070-19090-200100-220
Compressed Air InletmmDN40DN40DN40DN40DN50DN50DN50
Compressed Air
Consumption
m³/cycle1.21.51.822.22.42.6
Vacuum Pump
Capacity
m³/h165165230230280280280
Drainage PortmmDN125DN125DN150DN150DN150DN150DN150
Connected Loadkw11111317171720
Outside Dimensionmm4300X1900X34004600X2100X36004600X2300X38004600X2500X40004600X2600X41004600X2700X42004600X2900X4400
Weightkg4000450050006000650070007500
Cycle Times60-9060-10060-12070-16080-17080-18090-180

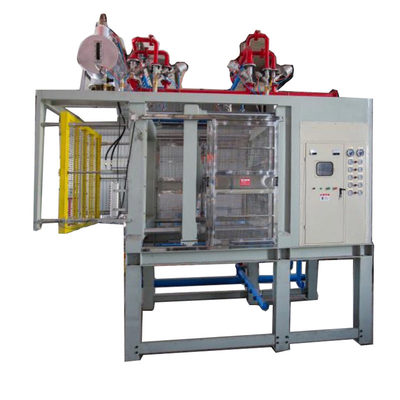

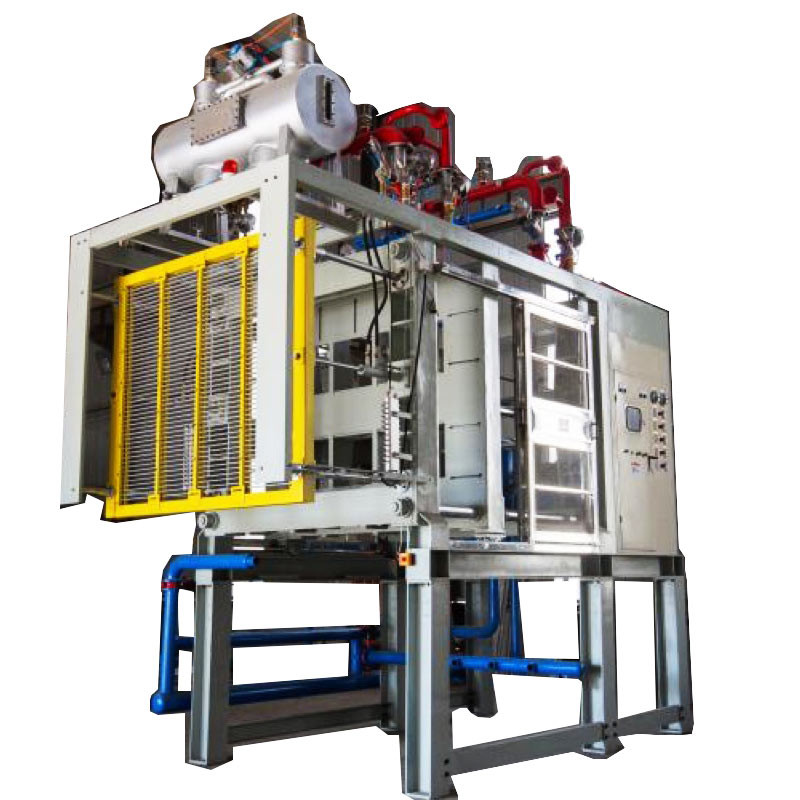

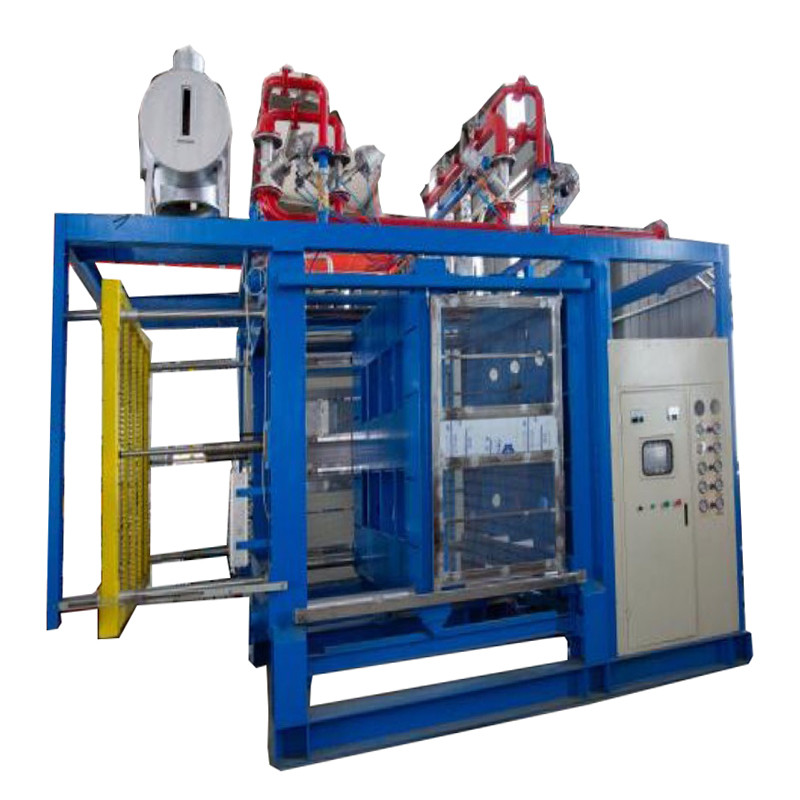

Customized EPS Foam Molding Machine Vacuum Automatic 50Hz 0Customized EPS Foam Molding Machine Vacuum Automatic 50Hz 1Customized EPS Foam Molding Machine Vacuum Automatic 50Hz 2
