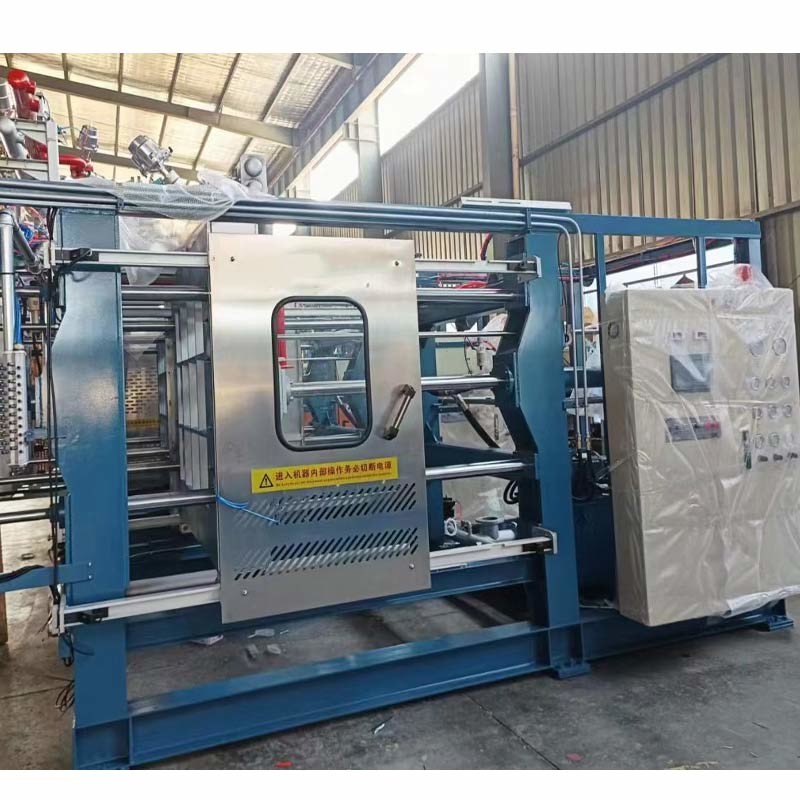

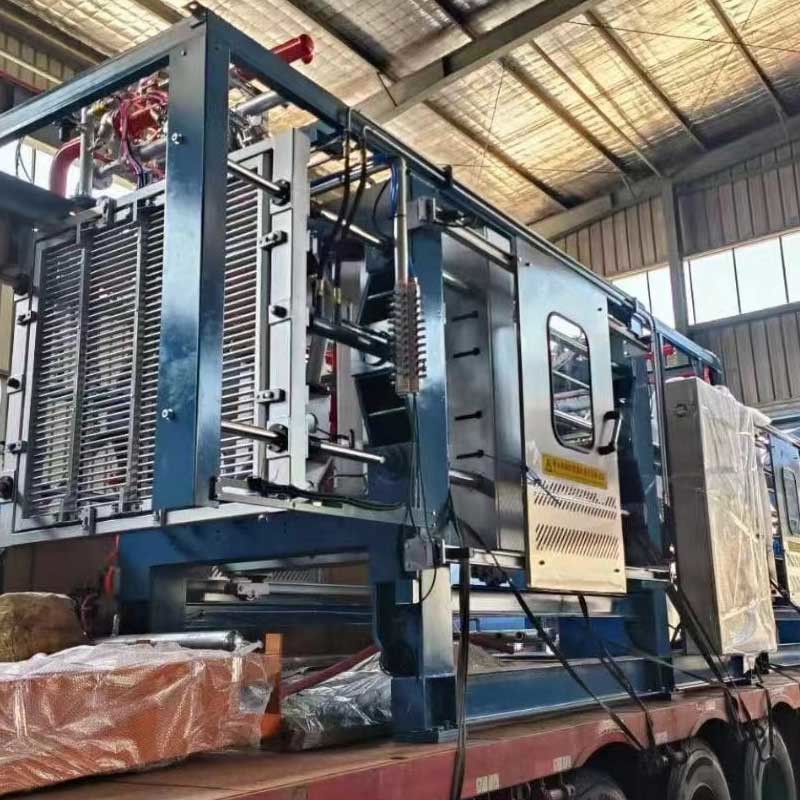

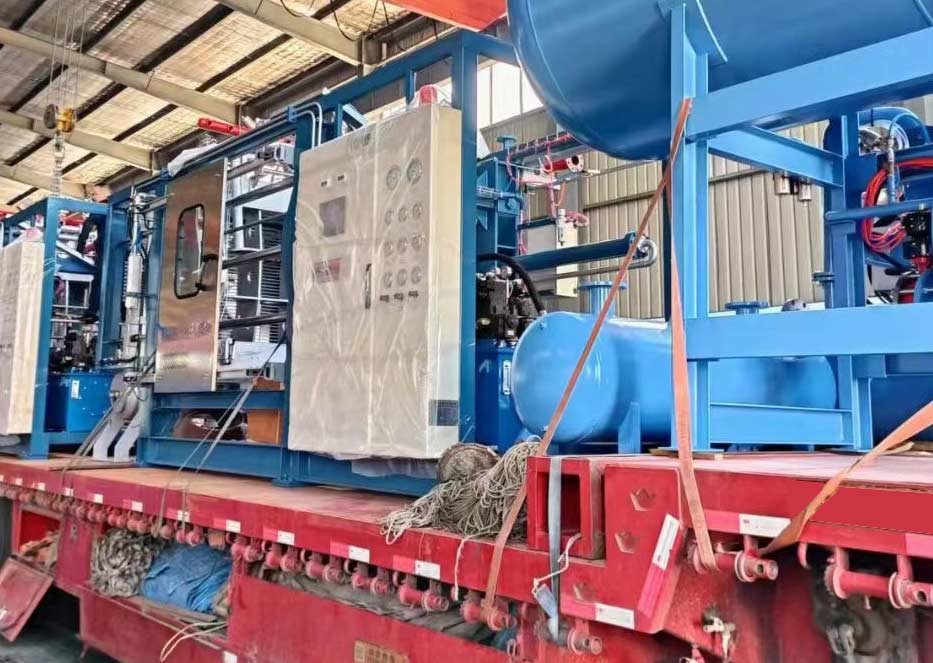

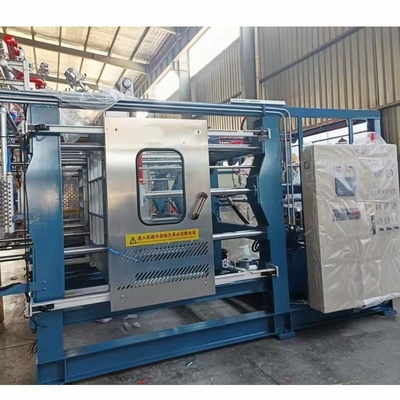

PIN SHENG FULL AUTOMATIC POLYSTYRENE EPS MOLDING MACHINE
High quality I-beam is selected as the main frame, PLC control system, HMI large screen display, convenient operation and simple maintenance.
| Item | Unit | PSSM100B | PSSM120B | PSSM140B | PSSM160B | PSSM170B | PSSM180B | PSSM200B |
| Mould Dimension | mm | 1000X800 | 1200X1000 | 1400X1200 | 1600X1400 | 1700X1500 | 1800X1600 | 2000X1800 |
| Max Product Dimension | mm | 850X650X350 | 1050X850X350 | 1250X1050X350 | 1450X1350X350 | 1550X1350X350 | 1650X1450X350 | 1850X1650X350 |
| Stroke | mm | 110-1360 | 110-1360 | 170-1420 | 170-1420 | 170-1420 | 120-1370 | 40-1290 |
| Steam Inlet | mm | DN65 | DN80 | DN100 | DN100 | DN100 | DN100 | DN100 |
| Steam Consumption | t/t | (10-15t)Steam of 1t Material | ||||||
| Cooling Water inlet | mm | DN65 | DN80 | DN80 | DN80 | DN80 | DN80 | DN100 |
| Cooling Water Consumption |
kg/cycle | 40-110 | 45-130 | 55-150 | 60-180 | 70-190 | 90-200 | 100-220 |
| Compressed Air Inlet | mm | DN40 | DN40 | DN40 | DN40 | DN50 | DN50 | DN50 |
| Compressed Air Consumption |
m³/cycle | 1.2 | 1.5 | 1.8 | 2 | 2.2 | 2.4 | 2.6 |
| Vacuum Pump Capacity |
m³/h | 165 | 165 | 230 | 230 | 280 | 280 | 280 |
| Drainage Port | mm | DN125 | DN125 | DN150 | DN150 | DN150 | DN150 | DN150 |
| Connected Load | kw | 11 | 11 | 13 | 17 | 17 | 17 | 20 |
| Outside Dimension | mm | 4300X1900X3400 | 4600X2100X3600 | 4600X2300X3800 | 4600X2500X4000 | 4600X2600X4100 | 4600X2700X4200 | 4600X2900X4400 |
| Weight | kg | 4000 | 4500 | 5000 | 6000 | 6500 | 7000 | 7500 |
| Cycle Time | s | 60-90 | 60-100 | 60-120 | 70-160 | 80-170 | 80-180 | 90-180 |
