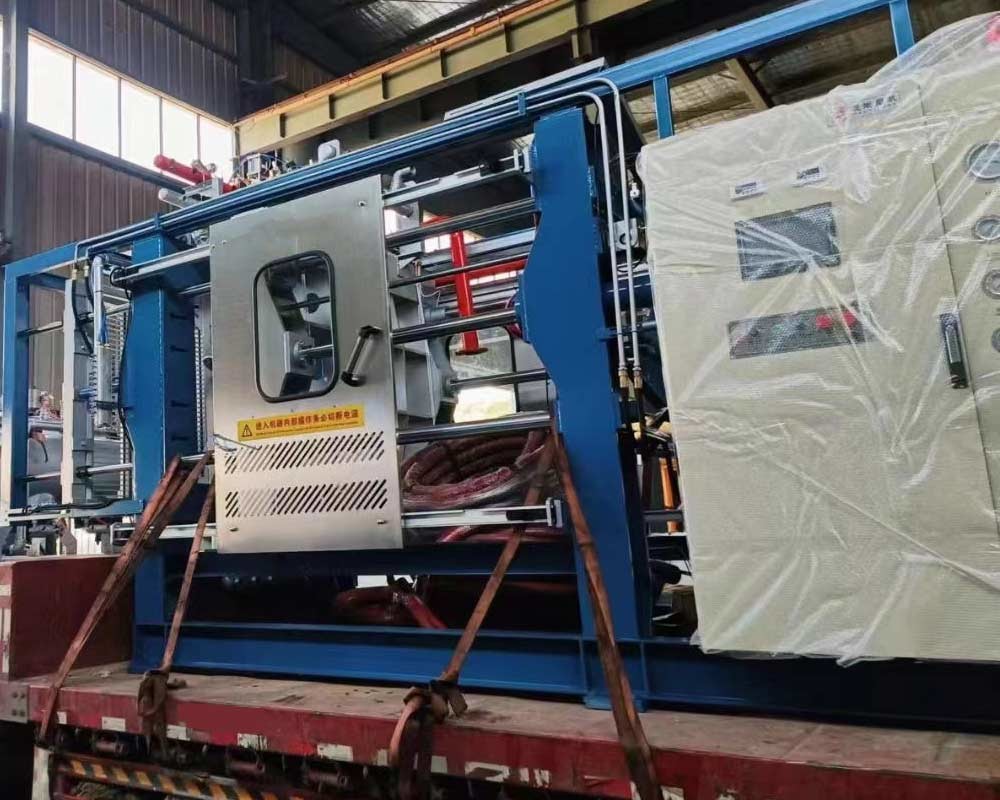

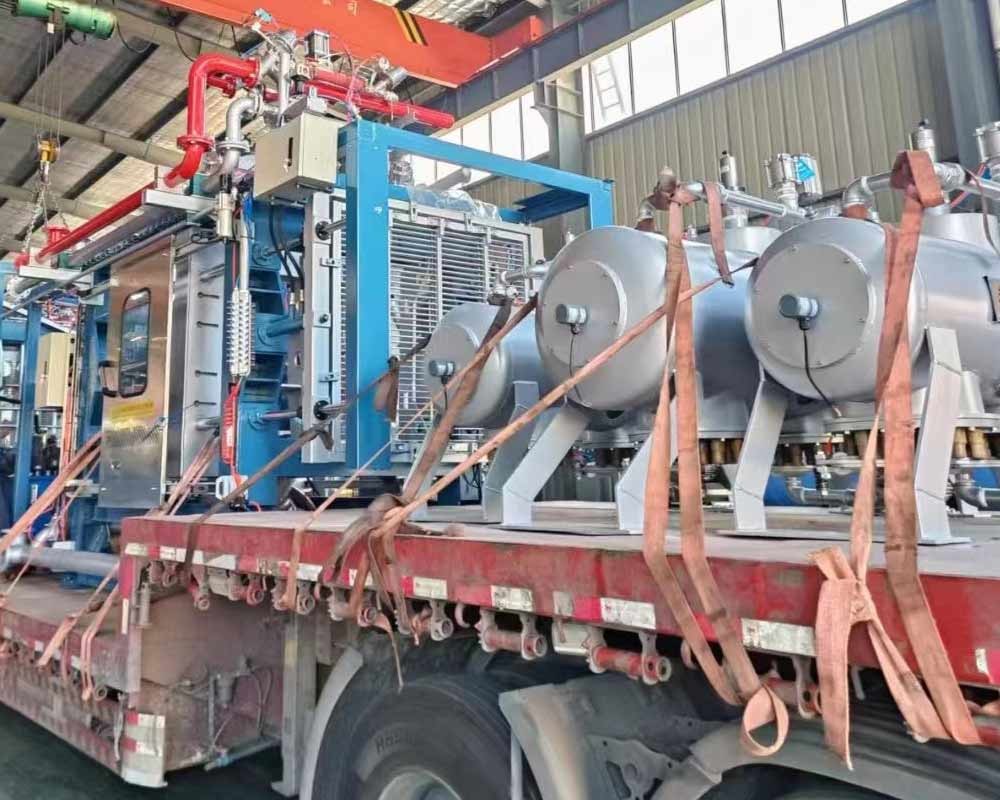

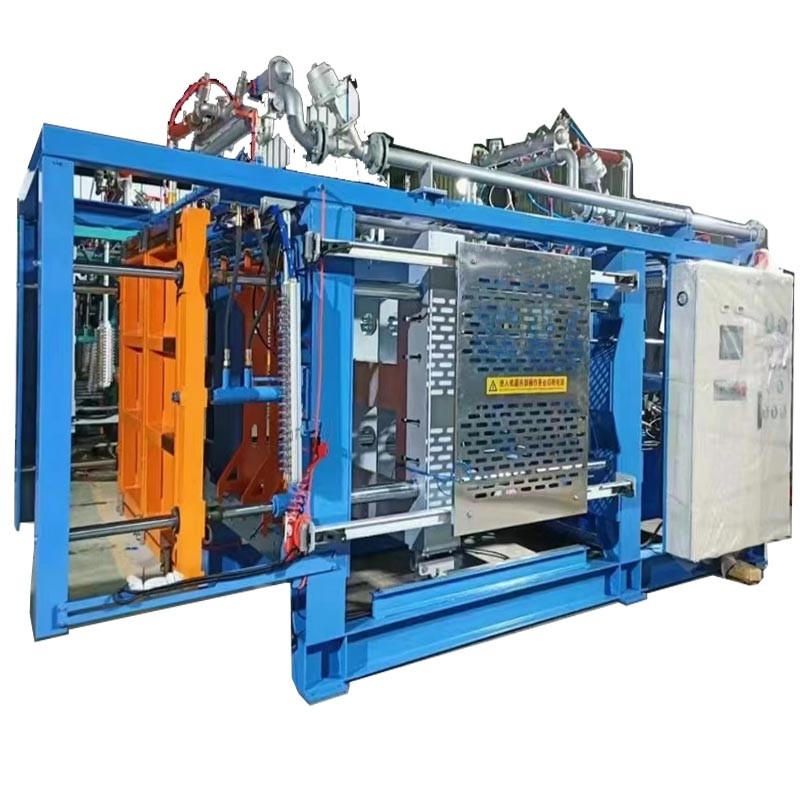

PIN SHENG FAST EPS SHAPE MOULDING MACHINE
The whole machine control system and electrical system components are of various famous brands. The equipment is stable in operation, simple in operation, convenient in maintenance, low in maintenance cost and high in operation efficiency.
| Item | Unit | PSSM100F | PSSM120F | PSSM140F | PSSM160F | PSSM170F | PSSM180F | PSSM200F |
| Mould Dimension | mm | 1000X800 | 1200X1000 | 1400X1200 | 1600X1400 | 1700X1500 | 1800X1600 | 2000X1800 |
| Max Product Dimension | mm | 850X650X350 | 1050X850X350 | 1250X1050X350 | 1450X1350X350 | 1550X1350X350 | 1650X1450X350 | 1850X1650X350 |
| Stroke | mm | 110-1360 | 110-1360 | 170-1420 | 170-1420 | 170-1420 | 120-1370 | 40-1290 |
| Steam Inlet | mm | DN65 | DN80 | DN100 | DN100 | DN100 | DN100 | DN100 |
| Steam Consumption | t/t | (9-13t)Steam of 1t Material | ||||||
| Cooling Water inlet | mm | DN65 | DN80 | DN80 | DN80 | DN80 | DN80 | DN100 |
| Cooling Water Consumption |
kg/cycle | 40-110 | 45-130 | 55-150 | 60-180 | 70-190 | 90-200 | 100-220 |
| Compressed Air Inlet | mm | DN40 | DN40 | DN40 | DN40 | DN50 | DN50 | DN50 |
| Compressed Air Consumption |
m³/cycle | 1.2 | 1.5 | 1.8 | 2 | 2.2 | 2.4 | 3 |
| Vacuum Pump Capacity |
m³/h | 165 | 165 | 230 | 230 | 280 | 280 | 280 |
| Drainage Port | mm | DN125 | DN125 | DN150 | DN150 | DN150 | DN150 | DN150 |
| Connected Load | kw | 11 | 11 | 13 | 17 | 17 | 17 | 20 |
| Outside Dimension | mm | 4300X1900X3400 | 4600X2100X3600 | 4600X2300X3800 | 4600X2500X4000 | 4600X2600X4100 | 4600X2700X4200 | 4600X2900X4400 |
| Weight | kg | 4000 | 4500 | 5000 | 6000 | 6500 | 7000 | 7500 |
| Cycle Time | s | 50-80 | 50-90 | 50-110 | 60-130 | 70-140 | 80-180 | 90-180 |
