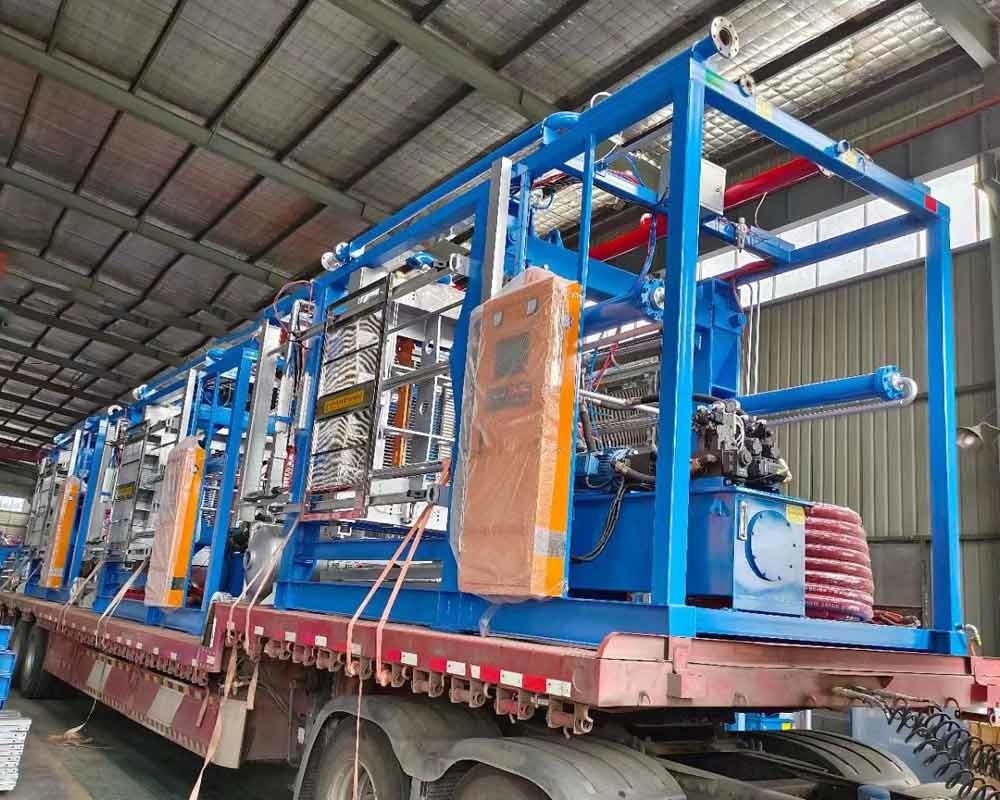

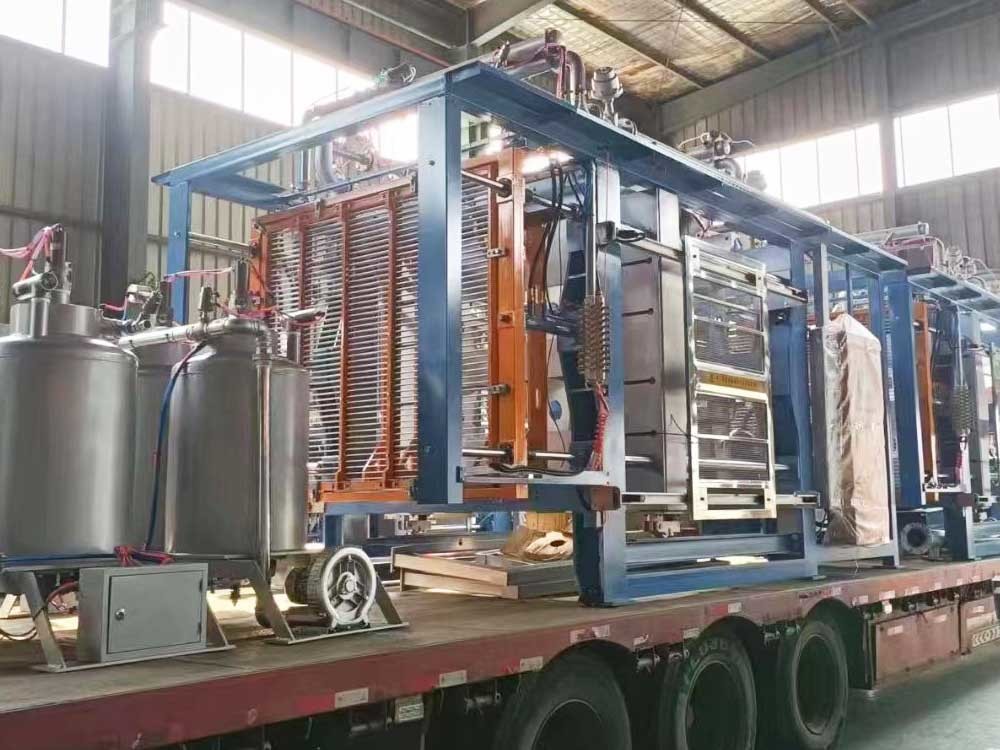

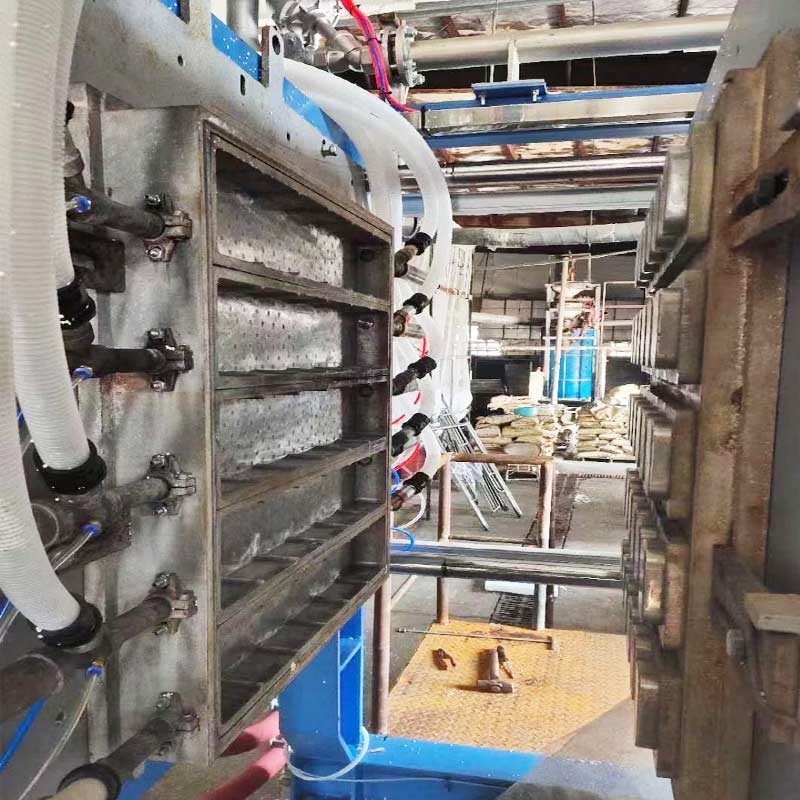

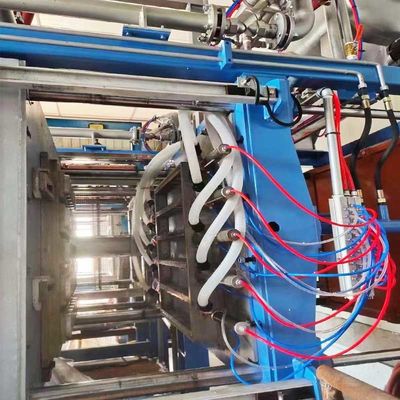

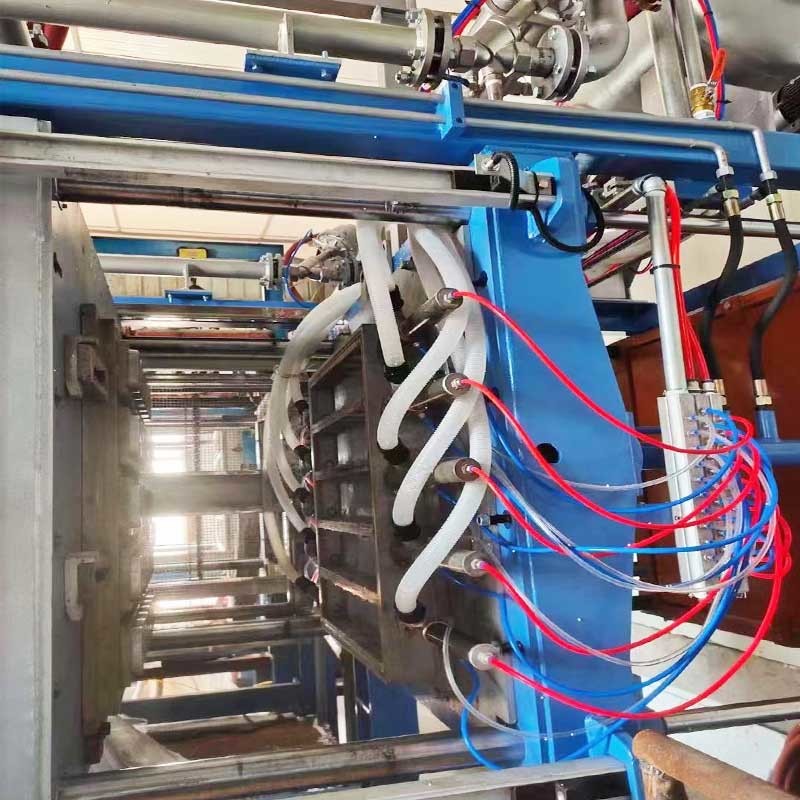

PIN SHENG EPS SHAPE MOLDING MACHINE
Mechanical Structure :
a.high-strength square tube welded by tempering prevent form deformation .
b.after sand-blasting,greatly improve corrosion performance and service life of equipment .
c.after sand-blasting ,anti-rust spray zinc-rich primer,rust greatly improve the erformance and service life of equipment .

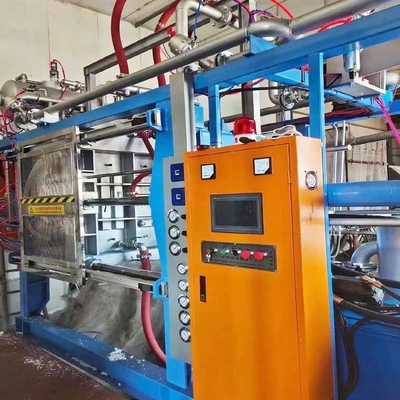

Electronic control:
a.adopt PLC(Mitsubishi) and HMI(WEINVIEW) ,for close-mold ,filling ,heating, cooling,de-mold,the whole proess is automatic.
b.all electronic components are used well-kown brands ,better stability of the equipment (Schneider).
c.the stroke is adjusted by the encoder controlled through the HMI settings ,easy adjustment and high accuracy .
| Item | Unit | PSSM140B | PSSM160B | PSSM170B | PSSM180B | PSSM200B |
| Mould Dimension | mm | 1400X1200 | 1600X1400 | 1700X1500 | 1800X1600 | 2000X1800 |
| Max Product Dimension | mm | 1250X1050X350 | 1450X1350X350 | 1550X1350X350 | 1650X1450X350 | 1850X1650X350 |
| Stroke | mm | 170-1420 | 170-1420 | 170-1420 | 120-1370 | 40-1290 |
| Steam Inlet | mm | DN100 | DN100 | DN100 | DN100 | DN100 |
| Steam Consumption | t/t | (10-15t)Steam of 1t Material | ||||
| Cooling Water inlet | mm | DN80 | DN80 | DN80 | DN80 | DN100 |
| Cooling Water Consumption |
kg/cycle | 55-150 | 60-180 | 70-190 | 90-200 | 100-220 |
| Compressed Air Inlet | mm | DN40 | DN40 | DN50 | DN50 | DN50 |
| Compressed Air Consumption |
m³/cycle | 1.8 | 2 | 2.2 | 2.4 | 2.6 |
| Vacuum Pump Capacity |
m³/h | 230 | 230 | 280 | 280 | 280 |
| Drainage Port | mm | DN150 | DN150 | DN150 | DN150 | DN150 |
| Connected Load | kw | 13 | 17 | 17 | 17 | 20 |
| Outside Dimension | mm | 4600X2300X3800 | 4600X2500X4000 | 4600X2600X4100 | 4600X2700X4200 | 4600X2900X4400 |
| Weight | kg | 5000 | 6000 | 6500 | 7000 | 7500 |
| Cycle Time | s | 60-120 | 70-160 | 80-170 | 80-180 | 90-180 |
