Home /Products/EPS Shape Moulding Machine/Automatic EPS Shape Moulding Machine With Vacuum

Automatic EPS Shape Moulding Machine With Vacuum

1
MOQ
negotiation
Price
Automatic EPS Shape Moulding Machine With Vacuum
Features Gallery Product Description Request A Quote
Features
Specifications
Processing Type: Foaming Machine
Cycle Time: 60-90S
Origin: Zhejiang CHINA
Warranty Period: 1year
Max Product Height: 3400 Mm
Machine Dimension: 43000x1900x3400 Mm
Mould Dimension: 1000X800
Highlight:

Vacuum EPS Shape Moulding Machine

,

Automatic EPS Shape Moulding Machine

,

Automatic Vacuum EPS Shape Moulding Machine
Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: PSSM 100B
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

Automatic EPS Shape Moulding Machine With Vacuum

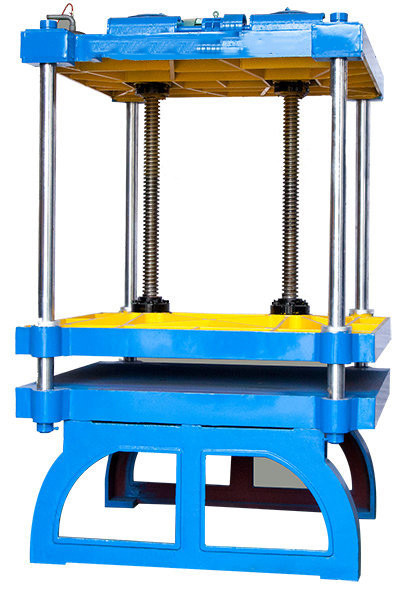

Mechanical Structure :

  • high-strength square tube welded by tempering prevent form deformation.
  • after sand-blasting,greatly improve corrosion performance and service life of equipment.
  • after sand-blasting,anti-rust spray zinc-rich primer,rust greatly improve the performance and service life of equipment.



Item Unit PSSM100B PSSM120B PSSM140B PSSM160B PSSM170B PSSM180B PSSM200B
Mouid Dimension mm 1000X800 1200X1000 1400X1200 1600X1400 1700X1500 1800X1600 2000X1800
Max Product Dimension mm 850X650X350 1050X850X350 1250X1050X350 1450X1350X350 1550X1350X350 1650X1450X350 1850X1650X350
Stroke mm 110-1360 110-1360 170-1420 170-1420 170-1420 120-1370 40-1290
Sream iniet mm DN65 DN80 DN100 DN100 DN100 DN100 DN100
Steam Consumption t/t (12-15t)Steam of 1t Material
Cooling Water inlet mm DN65 DN80 DN80 DN80 DN80 DN80 DN100
Cooling WaterConsumption Kg/cycle 40-110 45-130 55-150 60-180 70-190 90-200 100-220
Compressed Air Iniet mm DN40 DN40 DN40 DN40 DN50 DN50 DN50
Compressed AirConsumption m3/cycle 1.2 1.5 1.8 2 2.2 2.4 2.6
Vacuum PumpCapacity M3/h 165 165 230 230 280 280 280
Drainage Port mm DN125 DN125 DN150 DN150 DN150 DN150 DN150
Connected Load kw 11 11 13 17 17 17 20
Outside Dimension mm 4300X1900X3400 4600X2100X3600 4600X2300X3800 4600X2500X4000 4600X2600X4100 4600X2700X4200 4600X2900X4400
Weight kg 4000 4500 5000 6000 6500 7000 7500
Cycle Time s 60-90 60-100 60-120 70-160 80-170 80-180 90-180

Automatic EPS Shape Moulding Machine With Vacuum 0Automatic EPS Shape Moulding Machine With Vacuum 1Automatic EPS Shape Moulding Machine With Vacuum 2Automatic EPS Shape Moulding Machine With Vacuum 3Automatic EPS Shape Moulding Machine With Vacuum 4Automatic EPS Shape Moulding Machine With Vacuum 5

Tag:

Automatic EPS Shape Moulding Machine

20kw EPS Shape Moulding Machine

Automatic machine eps
