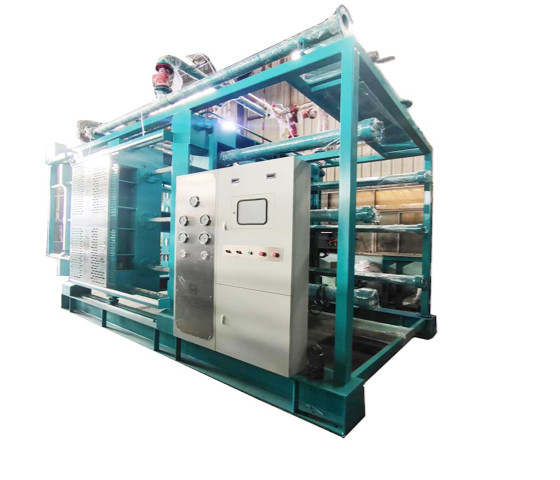

PINSHEGN 230 SUPER LARGE CUSTOMIZATION AUTOMATIC EPS FOAM MOLDING MACHINE
EPS forming machine basic type, stable performance and low price, very suitable for the production of packaging EPS products
Mechanical Structure:
1. Weld together with high-intensity square tube and avoid deformation of the template by tempering.
2. Increase the anticorrosion performance and useful life of the equipment largely after derusting by sandblast.
3. Spray zinc-rich primer for antirust to increase the antirust performance and useful life of the equipment largely after sand blasting.
Electric Control:
1. Controlled by PLC(Mitsubishi) with full-automatic operation in clamping,feeding,heating,cooling and stripping on HMI(WEINVIEW)
2. All the electrical components are adopted with well-known brands at home and abroad with more excellent equipment stability.
3. Stroke adjustment is controlled by encoder ,which is convenient ,which is convenient to adjust with high precision by setting on HMI.
Main features :
This machine has many improvements copared to the basic type machine and the features are as follows:
Mechanical Structure :
a.using 16/25m welded steel plate,greatly improve the strength of steel and equipment .
b.after tempering prevent form deformation.
c.after sand-blasting ,greatly improve corrosion performance and service life of the equipment .
d.after sand-blasting,anti-rust spray zinc -rich primer,rust greatly improve eq- pment performance and service life.
Steam System
Flow control valve and Japan with large pressure sensor controled so that the heating accuracy ,precise pressure is reached 20% reduction in energy con- sumption .
