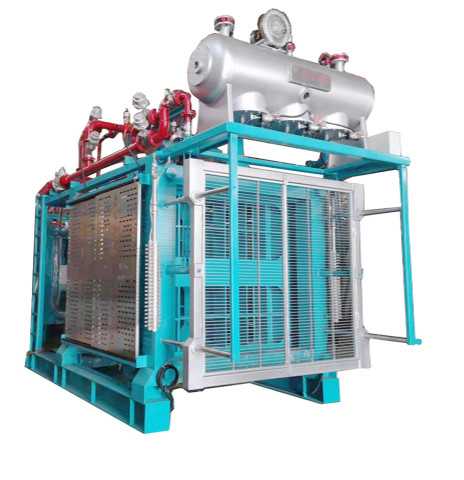

Fully Automatic EPS Styling Machine High Efficiency Energy Saving

1
MOQ
negotiation
Price
Fully Automatic EPS Styling Machine High Efficiency Energy Saving
Features Gallery Product Description Request A Quote
Features
Specifications
Processing Type: Foaming Machine
Cycle Time: 60-110S
Room Height Required: 5m
Origin: Zhejiang CHINA
Warranty Period: 1year
Max Product Height: 1840 Mm
Stroke: 40-1290 Mm
Foam Density: 8-64kg/m3
Highlight:

Energy Saving EPS Styling Machine

,

Fully Automatic EPS Styling Machine

,

High Efficiency EPS Styling Machine
Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: PSSM100-140B
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description
Pre-expansion: The process begins with the pre-expansion of EPS beads. The beads are fed into a pre-expander, where they are exposed to steam and heat.
 Main features :
This machine is the basic type of shape molding machine and the features are as follows:
Mechanical Structure :
a.high-strength square tube welded by tempering prevent form deformation.
b.after sand-blasting,greatly improve corrosion performance and service life of equipment .
c.after sand-blasting ,anti-rust spray zinc-rich primer,rust greatly improve the performance and service life of equipment . Electronic control:
a.adopt PLC(Mitsubishi and HMI(WEINVIEW) ,for close-mold ,filling ,heating,cooling,de-mold,the whole proess is automatic. b.all electronic components are used well- kown brands ,better stability of the equipment(Schneider).
c.the stroke is adjusted by the encoder controlled through the HMI settings ,easy adjustment and high accuracy .

Item Unit PSSM100B PSSM120B PSSM140B
Mould Dimension mm 1000X800 1200X1000 1400X1200
Max Product Dimension mm 850X650X350 1050X850X350 1250X1050X350
Stroke mm 110-1360 110-1360 170-1420
Steam Inlet mm DN65 DN80 DN100
Steam Consumption t/t (12-15t)Steam of 1t Material
Cooling Water inlet mm DN65 DN80 DN80
Cooling Water
Consumption		 kg/cycle 40-110 45-130 55-150
Compressed Air Inlet mm DN40 DN40 DN40
Compressed Air
Consumption		 m³/cycle 1.2 1.5 1.8
Vacuum Pump
Capacity		 m³/h 165 165 230
Drainage Port mm DN125 DN125 DN150
Connected Load kw 11 11 13
Outside Dimension mm 4300X1900X3400 4600X2100X3600 4600X2300X3800
Weight kg 4000 4500 5000
Cycle Time s 60-90 60-100 60-120


Fully Automatic EPS Styling Machine High Efficiency Energy Saving 0Fully Automatic EPS Styling Machine High Efficiency Energy Saving 1Fully Automatic EPS Styling Machine High Efficiency Energy Saving 2



Fully Automatic EPS Styling Machine High Efficiency Energy Saving 3

Fully Automatic EPS Styling Machine High Efficiency Energy Saving 4Fully Automatic EPS Styling Machine High Efficiency Energy Saving 5
