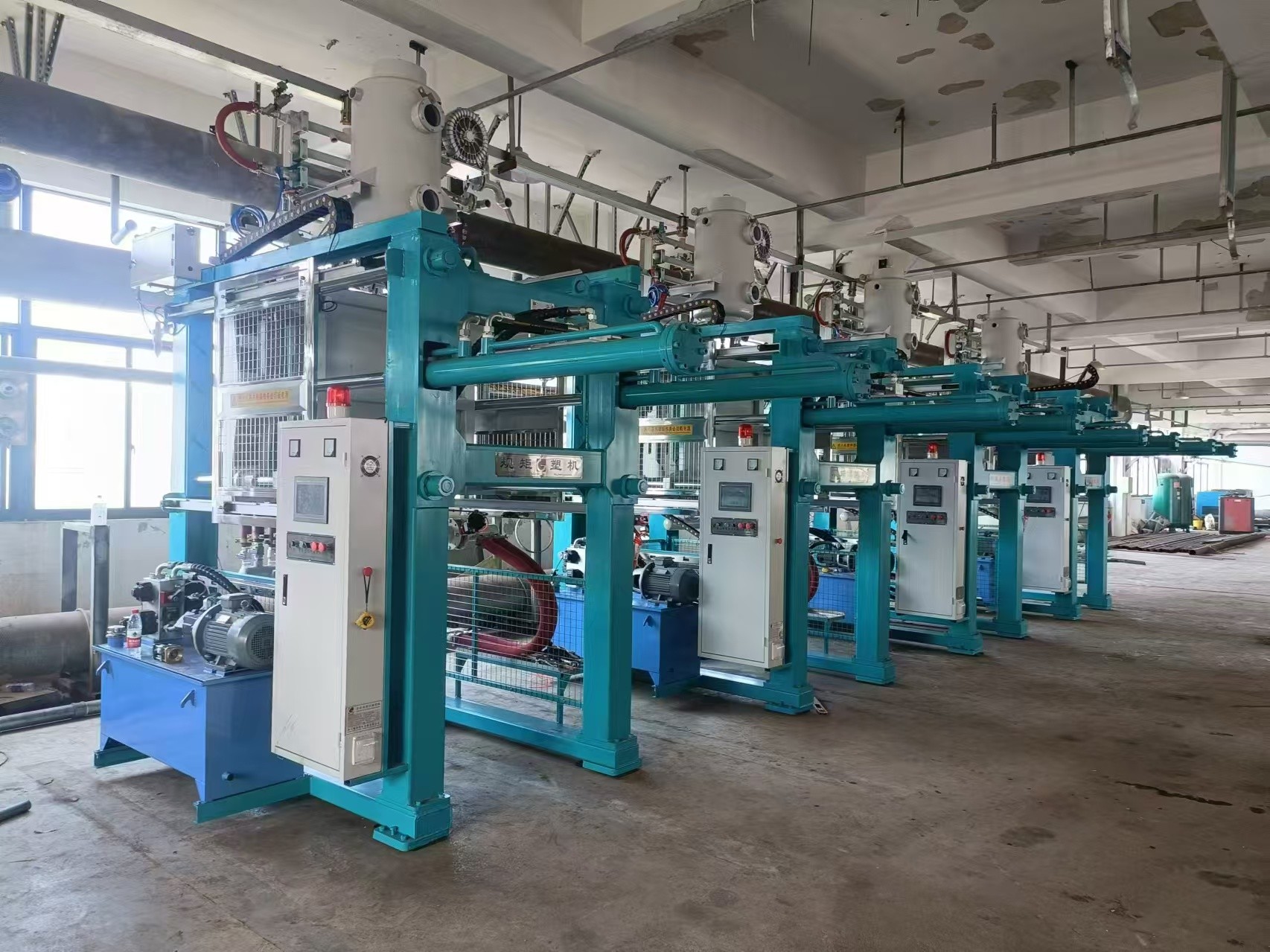

Professional EPS Foam Plastic Packaging Box Forming Machine

1
MOQ
negotiation
Price
Professional EPS Foam Plastic Packaging Box Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Processing Type: Foaming Machine
Cycle Time: 60-110S
Room Height Required: 5m
Origin: Zhejiang CHINA
Warranty Period: 1year
Max Product Height: 1840 Mm
Stroke: 40-1290 Mm
Foam Density: 8-64kg/m3
Highlight:

Plastic Packaging Box Forming Machine

,

Foam Plastic Packaging Box Forming Machine

,

EPS Plastic Packaging Box Forming Machine
Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: PSSM140-170B
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description
Pre-expansion: The process begins with the pre-expansion of EPS beads. The beads are fed into a pre-expander, where they are exposed to steam and heat.
 Main features :
This machine is the basic type of shape molding machine and the features are as follows:
Mechanical Structure :
a.high-strength square tube welded by tempering prevent form deformation.
b.after sand-blasting,greatly improve corrosion performance and service life of equipment .
c.after sand-blasting ,anti-rust spray zinc-rich primer,rust greatly improve the performance and service life of equipment . Electronic control:
a.adopt PLC(Mitsubishi and HMI(WEINVIEW) ,for close-mold ,filling ,heating,cooling,de-mold,the whole proess is automatic. b.all electronic components are used well- kown brands ,better stability of the equipment(Schneider).
c.the stroke is adjusted by the encoder controlled through the HMI settings ,easy adjustment and high accuracy .

Item Unit PSSM140B PSSM160B PSSM170B
Mould Dimension mm 1400X1200 1600X1400 1700X1500
Max Product Dimension mm 1250X1050X350 1450X1350X350 1550X1350X350
Stroke mm 170-1420 170-1420 170-1420
Steam Inlet mm DN100 DN100 DN100
Steam Consumption t/t (12-15t)Steam of 1t Material
Cooling Water inlet mm DN80 DN80 DN80
Cooling Water
Consumption		 kg/cycle 55-150 60-180 70-190
Compressed Air Inlet mm DN40 DN40 DN50
Compressed Air
Consumption		 m³/cycle 1.8 2 2.2
Vacuum Pump
Capacity		 m³/h 230 230 280
Drainage Port mm DN150 DN150 DN150
Connected Load kw 13 17 17
Outside Dimension mm 4600X2300X3800 4600X2500X4000 4600X2600X4100
Weight kg 5000 6000 6500
Cycle Time s 60-120 70-160 80-170


Professional EPS Foam Plastic Packaging Box Forming Machine 0Professional EPS Foam Plastic Packaging Box Forming Machine 1Professional EPS Foam Plastic Packaging Box Forming Machine 2



Professional EPS Foam Plastic Packaging Box Forming Machine 3

Professional EPS Foam Plastic Packaging Box Forming Machine 4Professional EPS Foam Plastic Packaging Box Forming Machine 5
