Name: Longwell Automatic Energy Saving EPS Shape Molding Machine For Foam Box
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSSM100-140B
Price: 39,500.00 USD
Availability: InStock

Longwell Automatic Energy Saving EPS Shape Molding Machine For Foam Box

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Processing Type: Foaming Machine

Cycle Time: 60-110S

Room Height Required: 5m

Origin: Zhejiang CHINA

Warranty Period: 1year

Max Product Height: 1840 Mm

Stroke: 40-1290 Mm

Foam Density: 8-64kg/m3

Highlight:

Longwell EPS Shape Molding Machine

Foam Box EPS Shape Molding Machine

Automatic EPS Shape Molding Machine

Basic Infomation

Place of Origin: Zhejiang China

Brand Name: PINSHENG

Model Number: PSSM100-140B

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 10pcs per month

Gallery

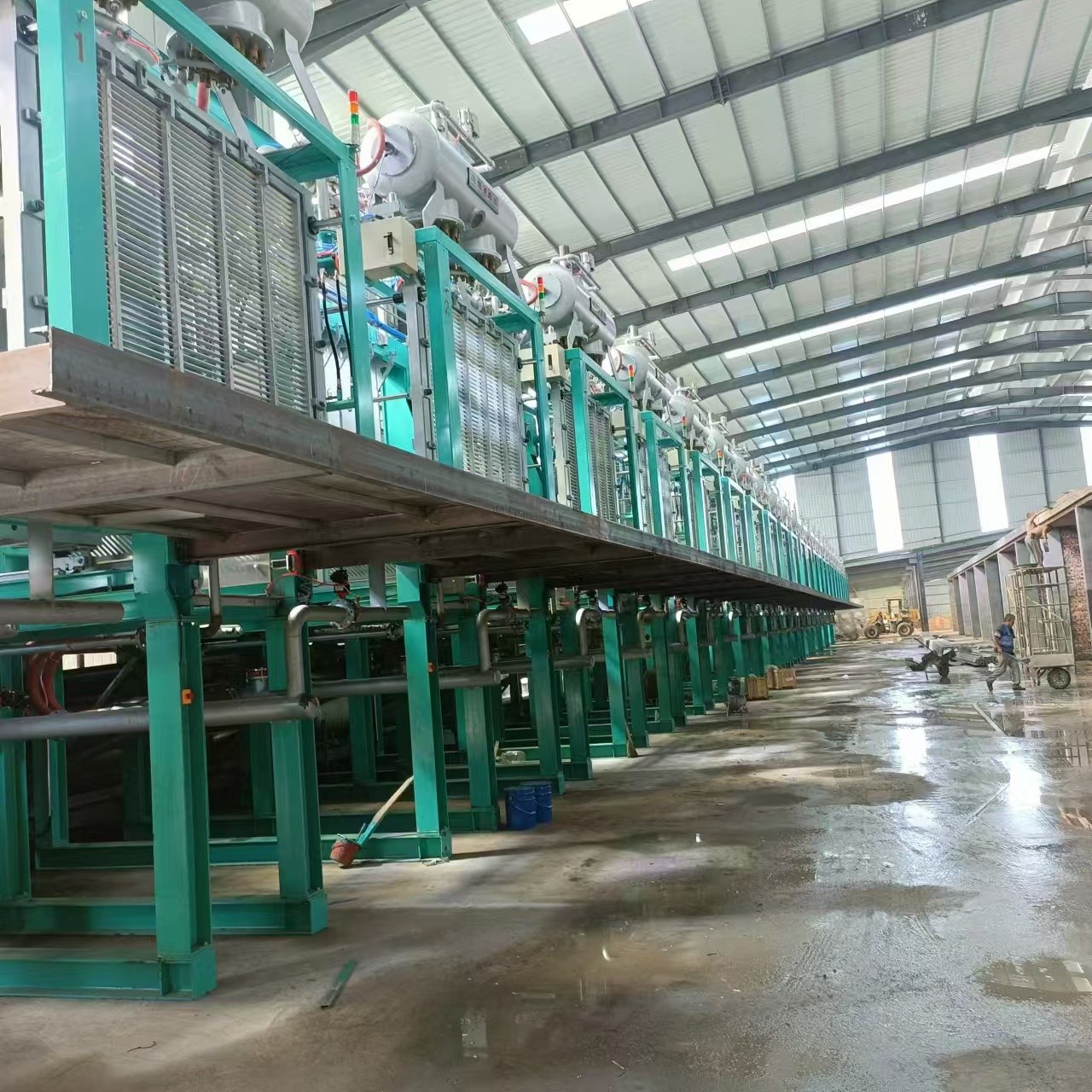

Longwell Automatic Energy Saving EPS Shape Molding Machine For Foam Box

Product Description

Pre-expansion: The process begins with the pre-expansion of EPS beads. The beads are fed into a pre-expander, where they are exposed to steam and heat.

Main features :
This machine is the basic type of shape molding machine and the features are as follows:
Mechanical Structure :
a.high-strength square tube welded by tempering prevent form deformation.

b.after sand-blasting,greatly improve corrosion performance and service life of equipment .
c.after sand-blasting ,anti-rust spray zinc-rich primer,rust greatly improve the performance and service life of equipment . Electronic control:
a.adopt PLC(Mitsubishi and HMI(WEINVIEW) ,for close-mold ,filling ,heating,cooling,de-mold,the whole proess is automatic. b.all electronic components are used well- kown brands ,better stability of the equipment(Schneider).
c.the stroke is adjusted by the encoder controlled through the HMI settings ,easy adjustment and high accuracy .

Item	Unit	PSSM100B	PSSM120B	PSSM140B
Mould Dimension	mm	1000X800	1200X1000	1400X1200
Max Product Dimension	mm	850X650X350	1050X850X350	1250X1050X350
Stroke	mm	110-1360	110-1360	170-1420
Steam Inlet	mm	DN65	DN80	DN100
Steam Consumption	t/t	(12-15t)Steam of 1t Material
Cooling Water inlet	mm	DN65	DN80	DN80
Cooling Water Consumption	kg/cycle	40-110	45-130	55-150
Compressed Air Inlet	mm	DN40	DN40	DN40
Compressed Air Consumption	m³/cycle	1.2	1.5	1.8
Vacuum Pump Capacity	m³/h	165	165	230
Drainage Port	mm	DN125	DN125	DN150
Connected Load	kw	11	11	13
Outside Dimension	mm	4300X1900X3400	4600X2100X3600	4600X2300X3800
Weight	kg	4000	4500	5000
Cycle Time	s	60-90	60-100	60-120

Longwell Automatic Energy Saving EPS Shape Molding Machine For Foam Box 0

Longwell Automatic Energy Saving EPS Shape Molding Machine For Foam Box 3

Longwell Automatic Energy Saving EPS Shape Molding Machine For Foam Box 4
