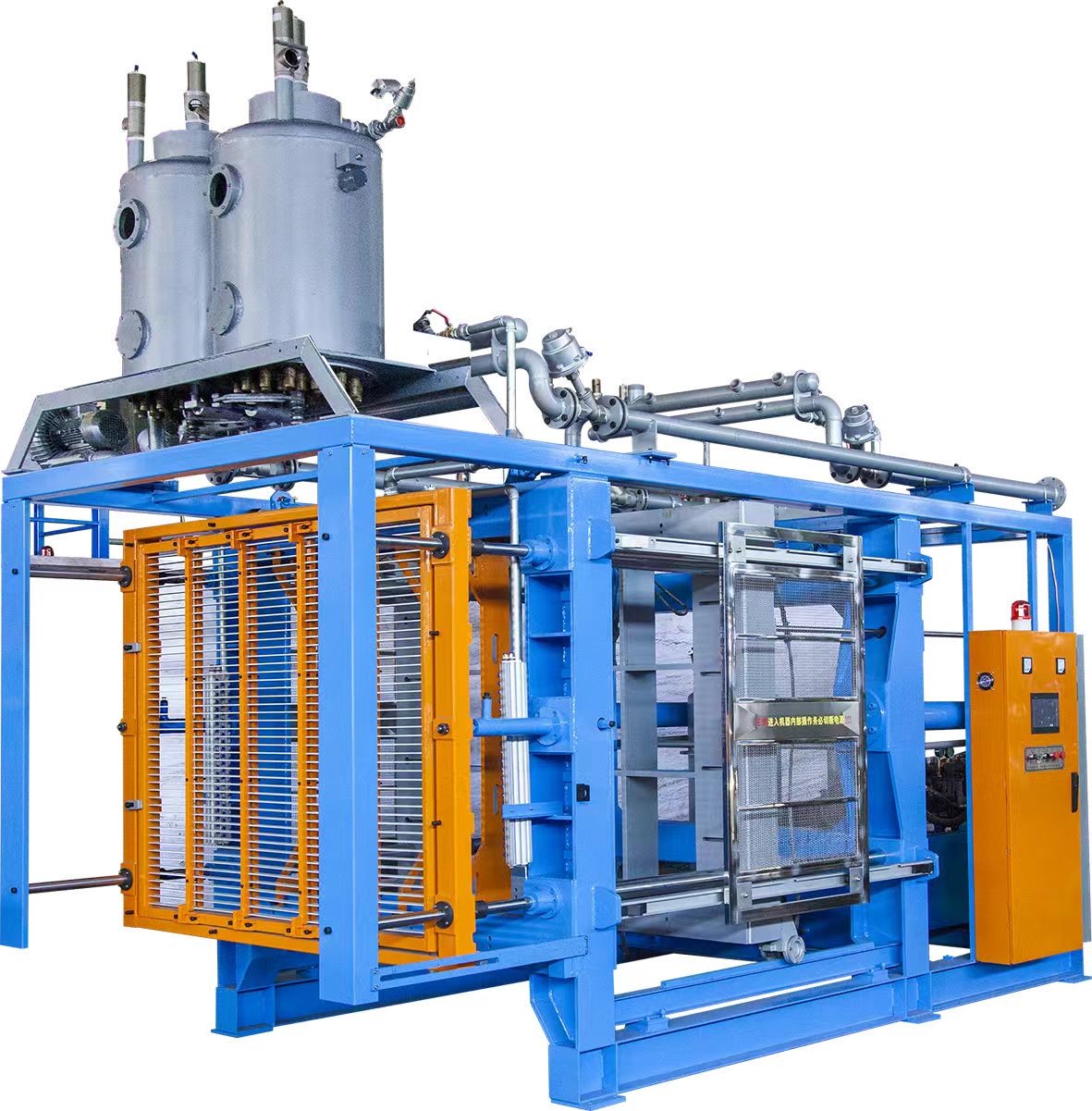

Professional EPS Shape Moulding Machine Production Line For Packaging.
Type equipment can produce vegetable transport box, seafood transport box, fruit transport box and so on
1. High-strength square tube welded by tempering prevent form deformation .
2. After sand-blasting,greatly improve corrosion performance and service life of equipment .
3. Adopt PLC(Mitsubishi) and HMI(WEINVIEW) ,for close-mold ,filling ,heating, cooling,de-mold,the whole proess is automatic.
Main features :
1. Frame structure
a. The high-strength frame further strengthens the front and rear templates, and adopts a one-piece machine foot to make the template and the machine foot into one, which greatly improves the rigidity and stability of the template.
b. The template is stress-relieved and annealed, and processed by an imported CNC machining center.
c. Sandblasting and rust removal, with high corrosion resistance and anti-corrosion cycle.
2. Hydraulic system
a. It is driven by one or two hydraulic cylinders, and the mold opening and closing speed is fast, the power is low and energy-saving.
b. According to the size of the table, multiple auxiliary hydraulic cylinders are used to lock the mold at the same time, and the mold can be locked evenly when the hydraulic system pressure is low.
3. Control system
a. PLC and touch screen are used to complete the machine's automatic cycle process of opening and closing the mold, feeding, heating, insulation, cooling, demolding, and product ejection.
b. The machine uses a rotary encoder to control the stroke distance of the mold opening and closing, and the gap is consistent each time when adding materials, and the feeding density is uniform.
c. Using high-precision sensors, the heating pressure parameters can be set directly on the touch screen, which is accurate and convenient.
Applications
- Insulation Panels: Cutting EPS blocks into sheets for insulation in buildings.
- Packaging Materials: Producing custom-sized packaging solutions for fragile items.
- Crafts and Decorations: Shaping EPS into decorative elements for arts and crafts.
Working Principle
- Loading: The EPS block is securely placed on the cutting table.
- Alignment: The machine aligns the block according to the desired cutting specifications.
- Cutting: Heated wires or blades slice through the EPS block, creating the specified dimensions.
- Removal: After cutting, the finished pieces are removed for further processing or use.
| Item |
Unit |
PSSM100E |
PSSM120E |
PSSM140E |
| Mould Dimension |
mm |
800X1000 |
1200X1000 |
1400X1200 |
| Max Product Dimension |
mm |
850X850X350 |
1050X850X350 |
1250X1050X350 |
| Stroke |
mm |
150-1500 |
150-1500 |
150-1500 |
| Steam Inlet |
mm |
DN65 |
DN80 |
DN100 |
| Steam Consumption |
t/t |
(7-11t)Steam of 1t Material |
| Cooling Water inlet |
mm |
DN80 |
DN80 |
DN80 |
Cooling Water
Consumption |
kg/cycle |
45-110 |
45-130 |
55-150 |
| Compressed Air Inlet |
mm |
DN40 |
DN40 |
DN40 |
Compressed Air
Consumption |
m³/cycle |
1.2 |
1.5 |
1.8 |
Vacuum Pump
Capacity |
m³/h |
165 |
165 |
230 |
| Drainage Port |
mm |
DN125 |
DN125 |
DN150 |
| Connected Load |
kw |
11 |
11 |
13 |
| Outside Dimension |
mm |
4300X1900X3400 |
4600X2100X3600 |
4600X2300X2800 |
| Weight |
kg |
4000 |
4500 |
5000 |
| Cycle Time |
s |
50-80 |
50-90 |
60-100 |
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.
2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied
3. Are you a trading company or a manufacturer?
We are manufacturer.
4. How long is your delivery time?
Normally delivery time is 30~45 days.
5. How many years have your company made this kind of equipment?
More than 10 years.
6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.
7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation
8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.
9. Can you can design the equipment according to our size?
Yes, it is acceptable
10. How many production lines in your factory?
We have total 10 production line.
